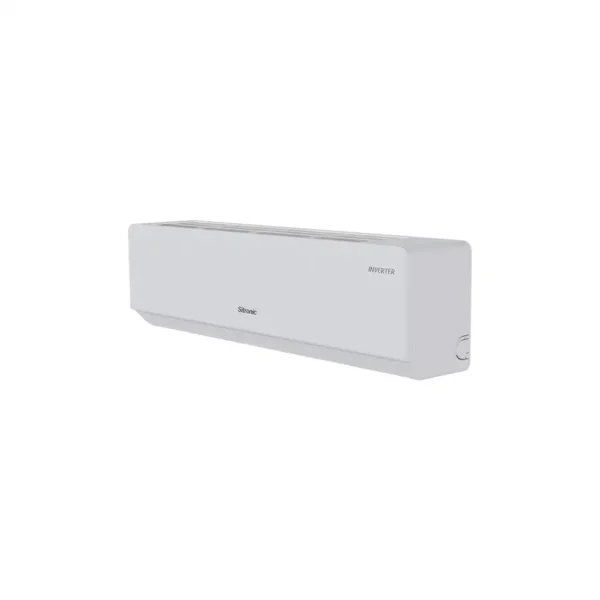

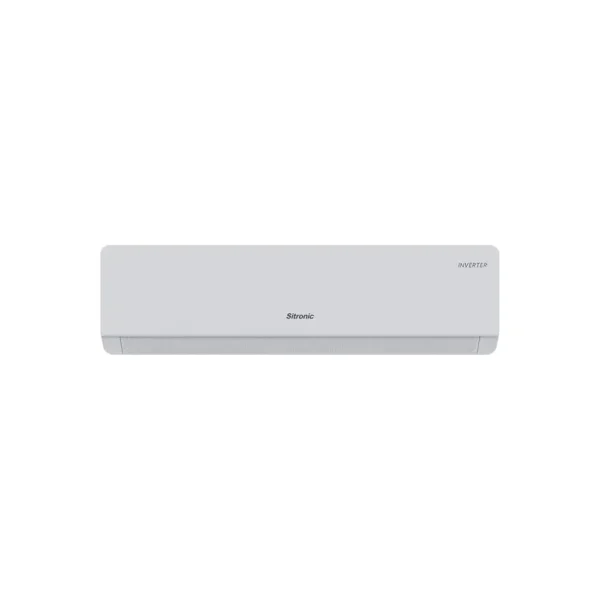

Conditioner Shine 24 — is a powerful and modern climate control system designed for rooms up to 70 m². It is equipped inverter technology, which provides efficient cooling and heating with minimal energy consumption. Inside is installed reliable GMCC compressor (model ASM135D23UFZ) and high-efficiency YYK25-4D engine with output power 25 W.
The air conditioner maintains the refrigerant R32a, which is environmentally friendly and efficient. At the same time, the device provides high air flow — before 900 m³/h, and the noise level is only 46 dB, which guarantees comfort even at night.
With precise tuning, thoughtful design and quality assembly, Shine 24 is suitable for both home and office use. It is the choice for those who value reliability, energy efficiency and silence.
| Characteristic | Meaning |
|---|---|
| Model | ASW-H24A4/MAR1DI |
| Room size | up to 72 m² |
| Air conditioner type | Inverter |
| Installed capacity (Cooling) | 5100 W |
| Installed capacity (Heating) | 5300 W |
| Energy Consumption (Cooling) | 1580 W |
| Energy consumption (Heating) | 1470 W |
| Operating Current (Cooling) | 7.2 A |
| Working current (Heating) | 6.48 A |
| Maximum power | 2800 W |
| Max. input current | 12 A |
| Power supply | 220-240 V / 1 phase / 50 Hz |
| Coolant | R32a |
| Coolant volume | 1400 g |
| Air flow volume | 900 m³/h |
| Noise level | 46 dB(A) |
| Weight of indoor unit | 12 kg |
| Weight of external unit | 35 kg |
| Engine brand | YYK25-4D |
| Engine output power | 25 W |
| Indoor unit size | 940×316×224 mm |
| Package size | 1010×385×310 mm |
| Compressor model | ASM135D23UFZ |
| Compressor manufacturer | GMCC |
| Compressor power | 4050 W |
